SC Hydraulic ABD-2 Air Booster System

SC Hydraulic Engineering ABD-2 Air Booster System is a leading manufacturer and designer of an ever growing line of high pressure, air-driven liquid pumps, as well as air and gas boosters which are being used in a variety of industries and applications.

Growing since 1953, we offer liquid pressures as high as 65,000 psig and can exceed 17,000 psig in gas pressures.

General Product Information

  • Pressures Up To 250-psi
  • Includes Air Drive Controls
  • Weighs Approximately 145-lbs
  • Equipped With One Abd-2 Booster
  • High Flow, Low Pressure Applications
  • 15-gallon Asme Receiver To Increase Flow Capacity

The S10320-ABD-2 Air Booster System is built for high volume applications requiring up to 250 psi air reserve in a 15 gallon ASME receiver with our double-acting 2:1 ratio air booster.

The booster and receiver is mounted on a heavy duty skid with forklift provisions and weighs approximately 145 pounds. Installation is simple with a 3/4″ NPT inlet to an inline filter and a 1/2″ NPT outlet high pressure regulator. The receiver is protected with a safety relief valve and has both receiver and regulator pressure gauges.

This system is a low cost solution when high pressure and relative high volumes of air is required in a pneumatic application. Contact us or one of our authorized distributors for application or sizing assistance.

Application

  • Increase plant air pressure
  • Applications requiring higher flow
  • Increase maximum torque on small air tools
  • Increase marginal air pressure to valve actuators
  • Extra force for small air clamps, roll tensioners, assembly machines and air presses

Dimensions

MODEL SELECTION CHART
Model No. Maximum Rated
Air Supply (Ps)
Maximum Rated
Air Outlet (Po)
Connection Ports Static Outlet
Stall Pressure
Actual Area
Ratio
Displacement
Per Stroke
(in3 per cycle)
Air Drive Air Inlet Air Outlet
ABD-2 150 psig 300 psig 3/4″ NPT 1/2″ NPT 1/2″ NPT Pa + Ps 2:01 223
10.3 bar 21 bar

Modification

M202 – Remote Pilot:This option provides a 1/8” NPT female port for remotely controlling the start/stop of the pump by connecting an external air signal to actuate the air cycling valve.

Performance Chart

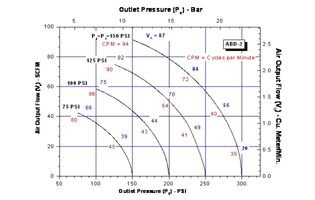

SC HYDRAULIC ENGINEERING ABD-2 PERFORMANCE CHART
SC HYDRAULIC ENGINEERING ABD-2 PERFORMANCE CHART

Read more : SC Hydraulic Engineering L7 High Flow Liquid Pump
