Lenc Energy Gas Solenoid Valve

Description

Lenc energy Gas solenoid Valve is a high-tech energy-saving enterprise that integrates R&D, design, production, installation, commissioning ,exporting and service for gas heat energy equipment, valves and accessories.

Gas Solenoid Valve

Function and working principle of Solenoid Valve

The Solenoid Valve is a valve that controls the automatic on and off of refrigerant in the refrigeration system. Solenoid valves can be divided into direct acting and indirect acting. Solenoid valves used in commercial refrigeration equipment are generally direct acting.

The solenoid valve is composed of a valve body and a solenoid head, which are generally direct-acting. The so-called direct opening and closing solenoid valve is to use the armature in the solenoid to directly control the opening and closing of the valve hole. The aperture is generally 6- Between 22mm.

The refrigeration system is divided into high pressure and low pressure, liquid and gas. In order to prevent the high-pressure liquid refrigerant from impacting the compressor after the compressor is stopped, solenoid valves are used for protection. When the compressor is started, the system pressure is in a balanced state so there is no impact At this time, the solenoid valve is powered on to turn on the compressor to start, and the refrigerant circulates for cooling.

When the compressor is shut down or the Explosion-Proof Gas Solenoid Valve is quickly cut off after the stop, the refrigerant on the high-pressure side will not return to the compressor in the opposite direction, but will pass through the compressor in the direction of circulation. Slowly the entire refrigeration system has Slowly restore balance with the stop pressure of the compressor.

When the refrigeration equipment is started, the solenoid coil generates electromagnetic force to open the valve. When the coil in the solenoid head is energized, the coil and the armature generate an inductive magnetic field. The armature drives the valve needle to move up, the valve hole is opened, and the fluid flows normally. When the set temperature is reached, when the coil in the solenoid is de-energized, the magnetic field disappears, the armature falls by rain and spring force, the valve needle closes the valve hole, and the fluid stops flowing.

The selection of Gas solenoid valve

Generally, the solenoid valve with the appropriate port size should be selected according to the flow rate of the system, and the working voltage, applicable ambient temperature, working pressure and other parameter requirements should also be considered. When installing the solenoid valve, the valve body of the solenoid valve should be perpendicular to the pipeline to ensure that the solenoid valve core can move up and down easily.

In order to ensure the tightness when the solenoid valve is closed, it is required that the flow direction of the medium in the system should be consistent with the nominal direction on the solenoid valve body. In addition, in order to prevent the solenoid valve core hole from being dirty, it is recommended that the front end of the solenoid valve Install the filter, and the solenoid valve body should be fixed on the unit or bracket to avoid vibration and cause system leakage.

The Products of Lenc Energy Gas Solenoid Valve

Lenc Explosion proof Series Gas Solenoid valve

• DEVEC/DEVECH Isolating explosion type solenoid valves (short as explosion proof valves) are widely used at gas transmission and control to provide opens and shuts or emergency shut-off for pipe line.
• Its explosion proof performance meets the regulations of GB35.3.1-2010 and GB3836.2-2010, granting the sign Exd?B T4 Gb. It can be used at danger zone 1 and 2 of a working area with ?B sign, using explosive gas within the range of T1 to T4 (230VAC 50Hz).
• It adopted a modular design allowing it to save installation space, easier to be maintained (no need to disassemble the pipe line) comparing to common valves.
• .It can be applied to gas medium, such as natural gas, methane, LPG and so on.

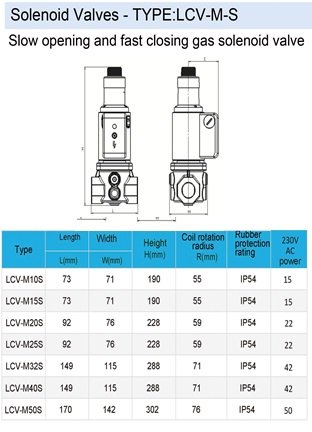

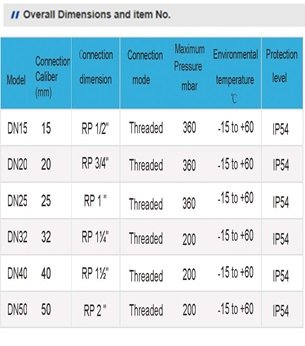

Lenc LCV-MS Series Gas Solenoid Valve

This gas solenoid valve can be widely used in the field of gas safety transmission control to provide gas supply for opening and closing or emergency cutting. Can be applied to gaseous media such as natural gas, methane,l iquefied petroleum gas, etc.

Normally closed, it will open quickly after power-on and the blue light is on.It will be closed immediately when the power is off and the light will be off .For the first time, you can re-adjust the factory setting mode state during power-on,  adjust the opening time and adjust the size of the back-end output flow,as well as the fast-open or slow-open section within the open range.There are bypass holes on both sides or bottom of the valve body, and the hole diameter is G 1 / 4”

Features: adjustable opening time and adjustable flow.

• Slow opening and fast closing gas solenoid valve
• Gas solenoid valve is also called gas emergency cut-off valve, it is applicable for a variety of gas such as city gas and natural gas
• It is the actuator of two – position on – off switch and transmissioning automatic control for heating combustion medium pipeline.
• It is widely used in industrial furnace heating and gas heating automatic control systems in other industries.Also suitable for automatic gas supply of civil gas hot water boiler

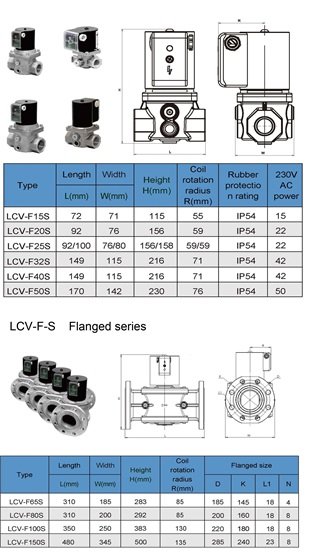

Lenc LVC-FS series fast opening and closing Gas Solenoid Valve?with external signal window?

This gas solenoid valve can be widely used in the field of gas safety transmission control to provide gas supply for opening and closing or emergency cutting. It can be applied to gaseous media such as natural gas, methane, liquefied petroleum gas etc.

Lenc LCV-HPC series Gas Solenoid Safety Valve

High pressure gas solenoid valve can be widely used in gas safety transmission to provide gas supply for opening and closing or emergency cut off. Can be applied to gas, such as natural gas, methane, and liquefied petroleum gas.

Under Pressure between 4-6Kg and below that, it can be automatically opened and closed, direct-acting fast-opening and fast-closing, and energy-saving design, the power consume while working is half of when it stars up, and the blue light is displayed after start up to achieve the working mode visualization.

Lenc LCV-RG Series Adjustable Flow Gas Solenoid Valve

This kind of solenoid valve is adopted to add a regulate knob device on the basis of the fast-opening valve, and the gas flow size can be regulated by turning the knob when the valve is opened.

It can be applied to gaseous media such as natural gas, methane, liquefied petroleum gas, etc. There are bypass holes on both sides or bottom of the valve body, and its diameter is G1/4″

Fuel gas solenoid valves are widely applied to the safe transportation of fuel gases so as to start the supply of gases or cut it off upon emergency. The mediums of gases applicable are: natural gases, methane, liquefied petroleum gas. When activated, the blue indicator lights up, this allows the operators to check working mode through visual observation.

Lenc LCV-MG Series Manual Normally Closed Emergency Shut-off  Gas Valve

Introduction of the production

Fuel gas solenoid valves are widely applied to the safe transportation of fuel gases so as to start the supply of gases or cut it off upon emergency. The mediums of gases applicable are: natural gases, methane, liquefied petroleum gas.

When activated, the blue indicator lights up, this allows the operators to check working mode through visual observation.

Operation and installation

Normally closed type, after the power is on, it will open quickly, and when the power is off, it will be closed immediately. By-pass ports are set on both sides and bottom of the valves, with diameter of G1/4” (DN10/15 diameter being G1/8”)

This LENC gas solenoid valve can be widely used in the field of gas safety transmission control to provide gas supply for opening and closing or emergency cut-off . Application for gaseous media such as natural gas, propane, liquefied petroleum gas, etc. The rear blue indicator lights up at star up (DN100 has no indicator light at the moment) and the working mode is visualized.

Shut-off Valve Dual Modular Gas Solenoid valve

The dual modular solenoid valve consist of two safety shutoff valves in one compact fitting?

• Solenoid shutoff valves as per DIN EN161 Class A Group 2
• Two A valves in one compact body
• Two valve blocks
• High flow rate
• Max pressure 500mbar
• Fast closing
• Fast or slow opening, with fast initial gas allowance
• Main volume adjustable
• Flexible combination between flange and thread
• Applicable to gases, such as natural gas, methane, LPG and so on
• Blue signal light indicates working status
• Compact and light weight

enc Multi-Function Gas Solenoid Valve

Gas MultiBloc/Functicon Solenoid valve intergrades filter, regulator, valves and pressure sensor in one compact fitting.

• Filter
• One regulator and two valves: BO1
• One valve is fast opening and one valve is slow opening
• Solenoid valves up to 360mbar as per DIN EN161 Class A Group 2
• Sensitive setting of output pressure by regulator as per DIN EN88 Class A Group 2
• High flow rate at low pressure drop
• DC Solenoid drive interference degree N
• Main Volume/Flow restrictor at V2
• Flange connection with pipe threads as per ISO7/1
• Applicable to gases, such as natural gas, methane, LPG and so on
• Blue signal light indicates working status
• Simple mounting, compact and light weight

Source : www.lenc-energy.com
