Delphin Technology Loggito

Delphin Technology Loggito series is a new compact and flexible measurement system for data acquisition Industry IoT. It enables inexpensive connectivity of decentralized measuring points for both low channel data logging and complex acquisition systems.

Continuous Data Acquisition at Decentralised Measuring Points

Measurement data can now be acquired decentrally, on-site or centrally and viewed from anywhere using any type of user device. Loggito is highly adaptable to decentralised data acquisition and monitoring of dispersed measurement points:

  • For the inexpensive establishment of a decentralised measurement network
  • For low-channel measurement tasks in laboratories
  • For process analysis with flexible numbers of channels
  • Uses universal sensor inputs for a range of different sensor types
  • Options for scalability and extendibility

Delphin Technology Loggito Live Measurement Data on any User Device

In combination with ProfiSignal Web software, measurement data can be viewed live anywhere on a desktop, notebook, tablet or smartphone. Vital data can also be summarised in a graphical dashboard view.

Loggito extension module

Loggito can be connected via LAN, USB or WLAN. The Loggito Logger is equipped with an internal data storage capability to enable internal processing and the computation of measurement channels. The extension module Loggito USB is scalable to the required number of channels, e.g. in control cabinet applications, for flexible and highly cost-effective measurement solutions via direct PC connections.

Delphin Technology Loggito
Delphin Technology Loggito

Product Features

  • The flexible measurement system, low-channel data logging, networked acquisition system
  • Innovative design for extendibility and connectivity using USB, LAN and WLAN technologies
  • Up to 8 GB of internal data storage for up to 240 million measurement values
  • High-precision, universal analog inputs
  • Web-based measurement data visualization (optional)
  • Also available as a PC-supported model without logger functions

Applications using Loggito

  • Decentralised data acquisition and monitoring
  • Monitoring of decentralised, dispersed systems
  • Low-channel data acquisition
  • Laboratory applications in educational environments
  • Low-power applications, e.g. for environmental measurement technology
  • Building monitoring
  • Laboratory data acquisition
  • Construction site monitoring
  • Test stands
  • Cold storage monitoring
  • Mobile data acquisition

Delphin Technology Loggito Functions (Measurement Hardware Component)

  • Cloud functioning through the installation of ProfiSignal Web software (measurement technology for edge cloud computing)
  • Mobile access to live measurement data from any user device
  • Dashboard displaying current process parameters, live data and historical data

Modbus and OPC UA

  • Modbus interface (optional)
  • OPC-UA server/client interface (optional)

Versatile Sensor Input Modules

  • High-precision, universal sensor inputs
  • Universal analog inputs (mV, mA, thermocouple, RTDs)
  • Modules channel variants: I/O modules with a range of different channel numbers, universal analog inputs and digital inputs and outputs
Delphin Technology Loggito Models

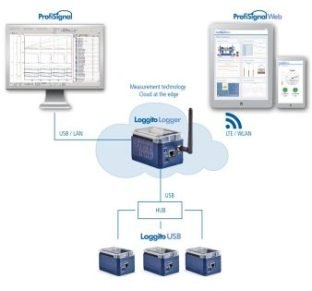

Delphin Technology Loggito Models

USB Extension Module

The Loggito USB module fulfills two functions:

  • USB modules enable the required number of channels to be provided, e.g. in control cabinet applications. Power is provided directly via the USB without the need for an internal power supply unit. The USB module does not require an internal storage capability because data logging is undertaken by a main Loggito Logger.
  • The USB module can also be connected directly to a computer. This gives you a highly inexpensive and flexible measurement system, e.g. for measurement stations in a laboratory.

Delphin Technology Loggito Software

The Loggito Logger is equipped with integrated software channels for online analysis, monitoring and automation functions. By using the ProfiSignal Web software, a multitude of web functions can be realised. The ProfiSignal software provides users with a powerful PC-based tool for measurement technology.

Loggito Software
Delphin Technology Loggito Software

Software Channels in the Loggito Logger

  • Online processing during acquisition using internal software channels
  • Calculation and statistical channels compute, monitor, count and integrate measurement data
  • Limit detector to monitor limit and limit values
  • Status detector to evaluate status information and to issue alerts in the event of an mA-signal failure
  • A trigger automatically performs setpoint curves with reset, stop/start triggers
  • Timer channels provide, for example, time delayed starts for experiment procedures

ProfiSignal Web: Live Measurement Data on any User Device

  • Mobile access to live measurement data from any user device
  • Live data, historical data, process parameters in an individually adjustable dashboard
  • Data storage capacity with cloud functions within the Loggito Logger (measurement technology for edge cloud computing)

ProfiSignal: PC-based Measurement Technology

  • Online and off-line analysis and visualization of measurement data
  • Creation of automated testing procedures

  Another Article:

Delphin Technology Loggito Technical Specifications

Channel type
8 AI-RTD                   8 AI                 4 AI-RTD                  4 AI
Analog inputs        8                            8                        4                             4
Appropriate for RTDs        4                             0                         2                             0
Sensors mV, mA, thermocouples, RTDs (no RTDs with channel types 8 AI and 4 AI)
Total sampling rate 0.1 Hz .. 500 Hz
Voltage measurement range ±78 mV .. ±10 V
Current measuring range 0 .. 20 mA / 4 .. 20 mA / ±20 mA / any (with freely selectable external shunts)
Resistance measurement range 0 .. 49 kΩ
Resolution/Type ADC 24 bit Sigma-Delta
Input impedance > 5 GΩ
Dielectric withstand voltage
(tolerable overvoltage)
±24 VDC
Max. differential voltage channel to channel ±24 VDC
Galvanic isolation against FE ±400 VDC
Precision of current and voltage measurement 0.01% from upper range value
Prescision resistance measurement 0.01% from upper range value (4-wire connection), 0.1% from upper range value (3-wire connection after additional offset determination)
RTD precision 0.1 K (4-wire connection), 1 K (3-wire connection)
Thermocouples precision < 1.5 K (internal reference junction) after compensation
Digital / frequency inputs or rather
Digital / PWM outputs (switchable)
         2                            2                         2                            2
Input signal low: 0 .. 1 V / high: 3,6 .. 100 VDC@3,5 mA
Frequency input measuring range 0.2 Hz .. 500 Hz
Counter width 64 bit
Max. switching voltage / current 50 V / 2.5 A for 2 seconds, 250 mA continuous current
PWM basic frequency / duty cycle 100 Hz / 1:20
Galvanic isolation ±400 VDC against FE / other channel groups
Modul type
Loggito Logger
Loggito USB
Interfaces
LAN 100 Base-Tx           –
WLAN 802.11b/g/n, max. 72 MBit/s (optional)           –
USB device – mini socket 2.0 low/full/high speed 2.0 low/full speed
USB host – type A socket 2.0 low/full/high speed           –
Protocols
RS 232/485 (via USB extension) Modbus RTU Master, Modbus RTU slave, SCPI, ASCII           –
TCP/IP Modbus TCP server & client, OPC UA client, OPC UA server           –
Data storage
Internal 4 / 8 GB (approx. 30 million measurement values per GB)           –
External USB, NFS, CIFS, (S)FTP           –
General technical information
Dimensions approx. L 95 mm x W 67 mm x H 65 mm
Weight approx. 220 g approx. 170 g
Fixing mounting rail DIN EN 60715 or screw mounting horizontally / vertically or upwards
Connecting terminals plug-in spring terminals, max. 24 terminals in 2 rows,
conductor cross-section (rigid / flexible) 0.2 .. 2.5 mm², ferrule 0.25 .. 1.5 mm²
Temperature range -20 .. 60° C
Humidity max. 90 % relative humidity, non-condensing
Supply voltage 12 .. 24 VDC / ±10 % 5 VDC
(via mini USB connector)
Power input max. 7.5 watts max. 2.5 watt
