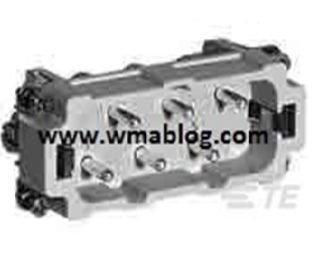

Sibas Insert Connectors are the insulating core of a connector. An insert is located at the center of the connector and holds the contacts within the housing in place. The inserts are made from a molded piece of resilient dielectric material that fits inside a connector shell and supports the connector contacts. The inserts are then specifically tooled for each different shell size and contact arrangement.

Circular connector inserts are easily assembled by simply inserting the appropriate snap-fit into the desired connector shell. Circular connector inserts are commonly used in hostile environments because of their resistance to dust, commonly used oils, and saltwater, in industries that include food processing, general manufacturing, and marine. variant product of sibas insert connectors :

Table of Contents

Sibas Insert Connectors HSB.6/35.Sti.S.B1-6

hsb electrical connector

Product Type Features

  • Product Size  6
  • Product Type  Insert
  • HTS Housings and Hoods  No

Electrical Characteristics

  • Power Circuit Voltage (V) 400
  • Power Circuit Current (A) 35

Body Features

  • Insert Style  Pin
  • Color  Beige
  • Rear Grommet  Without

Contact Features

  • Number of Poles  6+PE

Packaging Features

  • Packaging Quantity  5
  • Packaging Method  Box

Sibas Insert Connectors HE.24.STI.S.B 25-48

HE Model 24 Pins Electrical Connector

Product Type Features

  • Product Size  12
  • Product Type  Insert
  • HTS Housings and Hoods  No

Electrical Characteristics

  • Power Circuit Voltage (V) 400
  • Power Circuit Current (A) 16

Body Features

  • Insert Style  Pin
  • Color  Gray
  • Rear Grommet  Without

Contact Features

  • Number of Poles  24+PE

Packaging Features

  • Packaging Quantity  5
  • Packaging Method  Box

Other

  • Comment  Use in conjunction with P/N 1-1103640-1 to form 48 position insert.

Sibas Insert Connectors HE.16.BU.S.B 17-32

HE-32Pin Heavy Duty Connector

Product Type Features

  • Product Size  10
  • Product Type  Insert
  • HTS Housings and Hoods  No

Electrical Characteristics

  • Power Circuit Voltage (V) 400
  • Power Circuit Current (A) 16

Body Features

  • Insert Style  Socket
  • Color  Gray
  • Rear Grommet  Without

Contact Features

  • Number of Poles  16+PE

Packaging Features

  • Packaging Quantity  5
  • Packaging Method  Box

Other

  • Comment  Use in conjunction with P/N 1-1103639-1 to form 32 position insert.

Sibas Insert Connectors HE.16.STI.S.B 17-32

Connector HE.6.BU.S HDC Inserts Sibas

Product Type Features

  • Product Size  10
  • Product Type  Insert
  • HTS Housings and Hoods  No

Configuration Features

  • Number of Positions  16

Electrical Characteristics

  • Power Circuit Voltage (V) 400
  • Power Circuit Current (A) 16

Body Features

  • Insert Style  Pin
  • Color  Gray

Contact Features

  • Contact Type  Socket
  • Number of Poles  16+PE

Packaging Features

  • Packaging Quantity  5
  • Packaging Method  Loose Piece

Other

  • Comment  Use in conjunction with P/N 1-1103638-1 to form 32 position insert.

Sibas Insert Connectors HE.16.BU.S-T.B 1732

Connector HE.16.BU

Product Type Features

  • Product Size  6
  • Product Type  Connector
  • HTS Housings and Hoods  Yes

Body Features

  • Insert Style  Pin
  • Material  Die Cast Aluminum

Contact Features

  • Number of Poles  16+PE

Packaging Features

  • Packaging Quantity  1
  • Packaging Method  Package

Other

  • Comment  Includes cable fitting

Sibas Insert Connectors HE.24.BU.SC.B1-24

Insert Sibas Connector HE.24

Product Type Features

  • Product Size  8
  • Product Type  Insert
  • HTS Housings and Hoods  No

Electrical Characteristics

  • Power Circuit Voltage (V) 400
  • Power Circuit Current (A) 16

Body Features

  • Insert Style  Socket
  • Color  Gray
  • Rear Grommet  Without

Contact Features

  • Number of Poles  24+PE

Packaging Features

  • Packaging Quantity  5
  • Packaging Method  Box

Sibas Insert Connectors HE.24.STI.SC.B25-48

HE.24.STI.S.1-24 HDC Inserts Connector Sibas

Product Type Features

  • Product Size  12
  • Product Type  Insert
  • HTS Housings and Hoods  No

Configuration Features

  • Number of Positions  24

Electrical Characteristics

  • Power Circuit Voltage (V) 400
  • Power Circuit Current (A) 16

Body Features

  • Insert Style  Pin

Contact Features

  • Contact Type  Socket
  • Number of Poles  24+PE

Packaging Features

  • Packaging Quantity  5
  • Packaging Method  Box

Other

  • Comment  Use in conjunction with P/N 7-1103640-1 to form 48 position insert.

Sibas Insert Connectors HA.64.SGD-LB.1.29.Z

HA.64.SGD-LB.1.29.Z Insert Sibas Connector

Product Type Features

  • Sealed :Yes
  • Product Type :Housing
  • Product Size :11

Body Features

  • Seal Material :Neoprene
  • Seal Type :Profile
  • Sealable :Yes
  • Color :Silver Gray
  • Seal Color :Black
  • Material :Aluminum

Housing Features

  • Housing Material :Aluminum
  • Housing Color :Gray

Dimensions

  • Height: 98.5 mm [ 3.878 in ]
  • Width :120 mm [ 4.724 in ]
  • Length: 140 mm [ 5.512 in ]

Packaging Features

  • Packaging Quantity :3
  • Packaging Method : Loose Piece

Sibas Insert Connectors HN.D.15.BU.C

Connector HN.D.15.BU.C Insert Sibas

Product Type Features

  • Product Size :2
  • Product Type : Insert
  • HTS Housings and Hoods : No
  • Applies To : Panel

Configuration Features

  • Number of Positions :15

 Electrical Characteristics

  • Power Circuit Voltage (V): 250
  • Power Circuit Current (A): 10

Body Features

  • Insert Style : Socket
  • Color : Gray
  • Material : PC

 Contact Features

  • Contact Type : Pin
  • Number of Poles :15+PE

Packaging Features

  • Packaging Quantity :10
  • Packaging Method : Box

Other

  • Comment : Use with HN.D Series contact

Sibas Insert Connectors HN.D.15.STI.C

HN.D.15.STI.C Insert Connector Sibas

Product Type Features

  • Product Size :2
  • Product Type : Insert
  • HTS Housings and Hoods : No

Configuration Features

  • Number of Positions :15

Electrical Characteristics

  • Power Circuit Voltage (V): 250
  • Power Circuit Current (A): 10

4. Body Features

  • Insert Style : Pin
  • Color :Gray
  • Material :PolyCarbonate

Contact Features

  • Contact Type : Socket
  • Number of Poles :15+PE

Packaging Features

  • Packaging Quantity :10
  • Packaging Method :Box

Other

  • Comment :Use with HN.D Series contacts
