PR20 Brainchild, Popular Touch Paperless Recorder

Description

The PR Series high resolution 4.3″, 5.6″ and 12.1″ touch displays provide multiple display formats, easy touch navigation and support for 19-languages allowing ease of use and setup. In addition, freehand messaging is supported with a stylus of a finger directly on the touch screen that may be saved as part of the data log file.

There are multiple standard display views on all models; Digital, Bar Graph, Trend / Digital and combination Digital, Bar Graph and Trend while the 12.1″ PR30 also includes a circular chart view. Custom view pages including animation are optional for all models.

PR30 offers Circular Chart view allowing easy replacement* for 1 to multiple legacy circular chart recorders while providing secure electronic data files. The circular chart view is configurable for a variety of time formats from 30 minutes to 4-weeks.

Low-cost Touch Screen Paperless Recorder

Features

  • Touch Screen, TFT, 65K color
  • 100 msec. scan rate
  • Internal memory: 256 MB Flash
  • CPU: ARM Cortex-A8, 1Ghz
  • Standard: Ethernet, SD slot & USB
  • Option: RS232/422/485 & Pulse input
  • Protection: IP65 front & IP20 rear
  • Standards: CE, cULus & RoHS
  • Pulse input for flow applications
  • Direct Printer connectivity
  • Webserver & Email directly from Recorder
  • Remote IO channels, Virtual channels
  • Master & Slave, Modbus RTU, and TCP protocols
  • Custom display pages similar to HMI
  • Batch operations, built-in security & FDA 21 CFR part 11
  • 19 international languages

Specification

Product position medium size and powerful one, input numbers up to the highest 24 channels

Input numbers3, 6, 12, 18, 24 channels
True universal inputsThermocouples: J, K, T, E, B, R, S, N, L, U, P, W5, W3, LR, A1, A2, A3, M
RTD: Pt50, Pt100, Pt200, Pt500, Pt1000 (?=0.00385), Pt50, Pt100 (?=0.00391)Cu10 (?=0.00427), Cu50, Cu100(?=0.00426, 0.00428), Ni100, Ni200, Ni500,JPt50, JPt100, JPt200, JPt500, JPt1000 (?=0.003916)Ni1000 (?=0.00617) mA, V, mV
The fastest sampling rateto reach 100 msec / dot, default setting at 1 sec / dot
Math, External channels, Batch,only available by Plus versions
Custom display, FDA 21 CFR part 11
Display5.6″ TFT touch screen
Resolution640 x 480
MTFB backlight at 25°C30,000 hrs
BacklightLED
Screen saver, EmailYes
A faster CPUARM Cortex-A8, 1Ghz
Internal Flash memory256 MB
RAM256 MB
EthernetModbus TCP/IP
RS-232/422/485optional RS-232 or RS-422/485 Modbus RTU
SD card slot, USB host x 2standard, one USB in the front, another USB in the back
Pulse inputoptional DI card offering either logic or high-frequency pulse counter
START / STOP keyto start/stop record and to turn off the display only, not recorder itself so that a quick start possible
Calibration correctionon-site calibration possible, or using handy features of Offset and Gain for correction
Multilingualconvenient for local users by offering 19 languages including English, Japanese, Danish, Italian, Polish, Russian, Dutch, Korean, Thai, Turkish, Portuguese, Chinese(simplified, traditional), French, German, Spanish, Swedish, Brazil Portuguese, Czech, other languages negotiable
PC software Historical Viewer+ Configurationstandard
Extensive software Data Acquisition Studiooptional real-time monitoring
Power supply90-250VAC or 11-36VDC
Outer dimensions (W x H x L mm)144 x 144 x189
Shorter mounting depth (mm)171
DIN Panel cutout (W x H mm)137 x 137
ProtectionIP65 front, IP20 rear
Operating temperature0°C to 50°C
Storage temperature-30°C to 70°C
Safety standards to be availableCE, cULus, RoHS

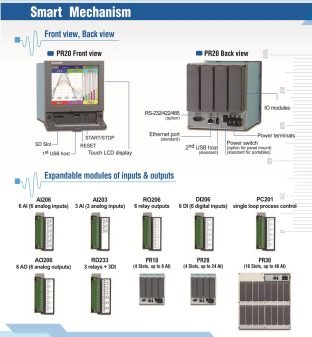

Paperless Recorder PR 20 slot in put and output
Paperless Recorder PR 20 slot in put and output

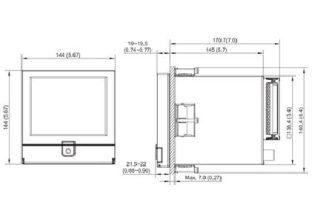

Dimention

Paperless Recorder PR 20 dimensi
Paperless Recorder PR 20 dimensi

PR Series Brainchild Paperless Recorders
