Level switch | Parker Level switch | Level Tank
JRS Parker float Level switch is a type of level sensor, a device used to detect the level of liquid within a tank. The switch may be used to control a pump, as an indicator, an alarm, or to control other devices. One type of float switch uses a mercury switch inside a hinged float.
The purpose of a parker float level switch is to open or close a circuit as the level of a liquid rises or falls. Most float switches are “normally closed,” meaning the two wires coming from the top of the switch complete a circuit when the float is at its low point, resting on its bottom clip
- Detection balls and detection rods are completely enclosed and thus the products are not affected by pressure, vacuum, or gases
- The lead switch is enclosed in a glass tube containing inert gas and thus the products operate safely incombustible gases
- When the detection ball moves up and down due to buoyancy, the lead switches fixed to the upper/lower limit contact point positions are sensed.
- Can be used for simultaneous control of water supply/drainage or alarms for water shortage/full water by additionally installing electrode type level switches (21F-G)
- In particular, types with the control unit not built in the products can be used in regions with the risk of explosion or cases where the location of detection is far away from the location of control by installing the power supply part and the amplification part separately
- Depending on connections, either N.C or N.O can be used or both can be used.
Model and Specifications (built-in type) JRS Float level switch
There is two models JRS series float level switch :
- JRS – S ( one pice float )
- JRS – D ( two pieces float )
Specification JRS series Float level switch
- Power supply/voltage: AC110V, AC220V/50/60Hz
- Voltage fluctuation range: ±10%
- Power consumption: 2VA
- Contact point capacity : AC250V 3A
- Internal pressure :7kgf/cm2
- Insulation resistance: At least 100 Ω DC 500V MEGA
- Life : Electric: at least 500,000 times / Mechanical: at least 5,000,000 times
- Workable temperature range: 0-80°C (Non-Condensing)

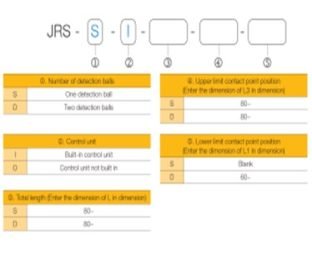

How to order JRS parker float level switch

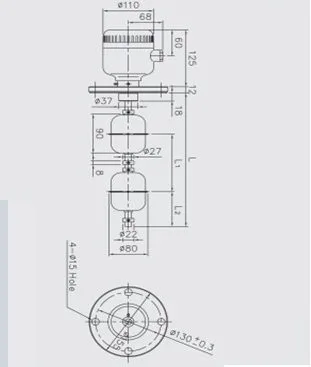

Dimensions of JRS parker Float level switch (built-in type/ exterior type ).
Example of use
