Crouzet is an independent company manufacturing electromechanic and electronic components for demanding applications in Aerospace &?Transportation, Energy, Building and Machinery Industry.
General Information
Crouzet provides Switches and Sensors, Electromechanical Actuators Electrical Protection Equipments, Cockpit Controls, Automation Controllers and Relays, and Instrumentation Services.?
Since 1921, Crouzet has a heritage of close collaboration with customers in the development of products, from standard components to fully customized solutions.?
Crouzet’s customers and partners can rely on our teams worldwide to always meet and often exceed their expectations. Driven by innovation, our experts are focused on designing and delivering the right product for the right application.? Crouzet is your trusted partner of choice to face industrial challenges of today and tomorrow.?Quality, Security, Environment.
At Crouzet, we make it a priority to guarantee both our employees’ health & safety at work and the safety of our products. We are also committed to providing products that meet our Customers’ expectations (Cost / Quality / Delay). For this reason, the Crouzet Management System is certified by AFNOR according to standards which take into account Health, Safety, Environment and specific requirements of the automotive, aeronautical, defence and nuclear industries.
Crouzet Market Applications
- Aerospace & Defense
- Railway
- Automotive
- Energy Distribution
- Nuclear
- Building Gates & Doors
- Renewable Energy
- Specialty Vehicles
- Building Efficiency
- Food & Beverage
- Industrial Automation

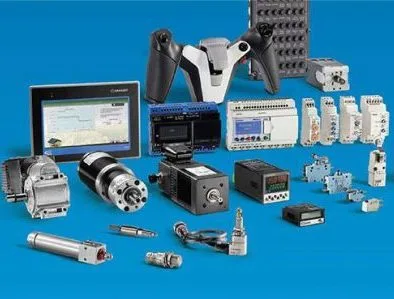

Crouzet Product Lines
Microswitches
With over 60 years’ experience in snap-action technology, Crouzet offers a complete range of Microswitches for the highly demanding markets. The extensive choice consists of standard or customized Sub-subminiature, Subminiature, Miniature and Special microswitches, all conform to the most rigorous quality standards.
Our microswitches are characterized by a large range of switching ratings from 1 mA to 25 A, magnetic blowout versions for High DC ratings, sealed models, positive break versions, a wide range of operating temperatures, models for explosive atmospheres, long service life and wide variety of actuators, contact materials and fixing means.
- Sub-subminiature
- Subminiature
- Miniature
- Special
| Approx body size (mm) | 15x8x5 | Ø8×8 | 13x10x5 | 13x10x5 |
| SERIES | V5S 8320 | 83228 83229 | 83141 | V5D 83194 |
| TYPE | Sealed | Cylindric Adjustable | High accuracy | Standard |
|---|---|---|---|---|
| Rating (max) | 4A / 250Vac | 5A / 250Vac | 5A / 250Vac | 5A / 250Vac |
| Degree of protection | IP67/IP69 | IP40 | IP40 | IP40 |
| Operating temperature | -40°C / +90°C | -55°C / +140°C | -55°C / +150°C | -40°C / +110°C |
| Operating force (max) | 1.5 N | 1.7 N | 2 N | 1.4 N |
| Differential travel (max) | 0.06 –> 0.20 mm | 0.12 mm; 0.19 mm | 0.06 mm | 0.13 mm |
| Overtravel (min) | 2 mm | 0.15 mm | 0.1 mm | 0.25 mm |
| Mechanical life (cycles) | 1 M | 2 M | 2 M | 10 M |
Limit Switches
With its choice of casings, wide range of actuators, variety of connections and high degree of resistance to impact and splashes, Crouzet offers limit switches available in the following ranges: Metal body, Plastic body, Special products and Products for severe environments.
Their main characteristics are: IP6x seal, a wide range of actuators (plungers and rollers), rotary heads with momentary action, positive break contacts, compact size, etc. They also offer the option of having special levers, prewiring, connection via ISO cable glands, etc.
- Standard
- Special
- Harsh environment
- Door Switches
- DOOR SWITCHES – WITH LATCHING FUNCTION
83523 / 83528
› Double-break flexible leaf snap-action mechanism for precise operation
› Compact size, narrow profile – Robust construction, metal plunger
and bracket
› Latching mode, with auto reset at next actuation
› Changeover-SPDT microswitch as standard
› One, two and three-pole configurations
› Very long life
› Ratings from 1 mA 4 Vc to 10 A 250 Va
› Operating temperature -40 °C up to +125 °C
› Choice of connections - Seat Switches
| Approxbody size (mm) | 49x30x16 | 49x39x16 | 60x27x25 | 73x56x36 | 51x87x33 |
| SERIES | 8387 | 8388 | 8380 | 8384 | 8383 |
| TYPE | Prewired ‘EN’ size | Prewired ‘US’ size | Plastic housing | Standard | Adjustable fixing |
|---|---|---|---|---|---|
| Housing material | Zamak | Zamak | Plastic | Zamak | Zamak |
| Actuating movement | Linear Rotary Multidirection | Linear Rotary Multidirection | Linear Rotary Multidirection | Linear Rotary Multidirection | Linear Rotary Multidirection |
| Connections | Pre-wired Connector | Pre-wired Connector | Terminals Connector | Terminals | Terminals |
| Degree of protection | IP66/IP67/IP69 | IP66/IP67/IP69 | IP65 | IP66 | IP66 |
| Operating temperature | -40°C / +70°C | -40°C / +70°C | -30°C / +70°C | -40°C / +70°C | -40°C / +70°C |
| Rating (max) | 10A / 250Vac | 10A / 250Vac | 6A / 250Vac | 10A / 250Vac | 10A / 250Vac |
| Mechanical life (cycles) | 10 M | 10 M | 10 M | 10 M | 10 M |
Manually Operated Switches
- Manually Operated Switches
- Pushbuttons
- Toggles
- Others
| Approxbody size (mm) | 49x30x16 | 49x39x16 | 60x27x25 | 73x56x36 | 51x87x33 |
| SERIES | 8387 | 8388 | 8380 | 8384 | 8383 |
| TYPE | Prewired ‘EN’ size | Prewired ‘US’ size | Plastic housing | Standard | Adjustable fixing |
|---|---|---|---|---|---|
| Housing material | Zamak | Zamak | Plastic | Zamak | Zamak |
| Actuating movement | Linear Rotary Multidirection | Linear Rotary Multidirection | Linear Rotary Multidirection | Linear Rotary Multidirection | Linear Rotary Multidirection |
| Connections | Pre-wired Connector | Pre-wired Connector | Terminals Connector | Terminals | Terminals |
| Degree of protection | IP66/IP67/IP69 | IP66/IP67/IP69 | IP65 | IP66 | IP66 |
| Operating temperature | -40°C / +70°C | -40°C / +70°C | -30°C / +70°C | -40°C / +70°C | -40°C / +70°C |
| Rating (max) | 10A / 250Vac | 10A / 250Vac | 6A / 250Vac | 10A / 250Vac | 10A / 250Vac |
| Mechanical life (cycles) | 10 M | 10 M | 10 M | 10 M | 10 M |
The features shown in this selection chart represent the extent of performance of each Series. Not all combinations of characteristics are feasible at an individual product. Please refer to relevant product sheets or consult our customer service. For more information see also the “Selection guide” and the “Basic technical concepts”.
Note : data contained in product sheets dated 2016 and before may differ from the features shown in this selection chart. Update is in progress. Please contact us for confirmation.
