Sibas Insert Connectors

Sibas Insert Connectors HE.6.BU.S HDC

Product Type Features

• Product Size : 3
• Product Type: Connector
• HTS Housings and Hoods: No

Features

• Number of Positions : 6
• Electrical Characteristics
• Power Circuit Voltage (V) : 400
• Power Circuit Current (A) : 16

Body Features

• Insert Style: Socket
• Color: Gray

Contact Features

• Contact Type: Socket
• Number of Poles: 6+PE

Packaging Features

• Packaging Quantity: 5
• Packaging Method: Loose Piece

Sibas Insert Connectors HE.6.STI.S

Product Type Features

• Product Size?: 3
• Product Type?: Connector
• HTS Housings and Hoods?: No2.

Configuration Features

• Number of Positions?: 63.

Characteristics

• Circuit Voltage?(V) :400
• Power Circuit Current?(A) :164.

Body Features

• Insert Style?: Pin
• Color?: Gray

Contact Features

• Contact Type?: Pin
• Number of Poles?: 6+PE

Packaging Features

• Packaging Quantity?: 5
• Packaging Method?: Loose Piece

Sibas Insert Housing Connectors HA.16.AGD-LB

Product Type Features

• Sealed?: Yes
•  Product Type?: Housing
•  Product Size?: 5

Body Features

• Seal Material?: Neoprene
• Seal Type?: Flange, Profile
• Sealable?: Yes
• Color?: Silver Gray
• Seal Color?: Black
• Material?: Aluminum

Housing Features

• Housing Material?: Aluminum
• Housing Color?: Gray

Dimensions

• Height: 28?mm?[?1.1?in?]
• Width : 30?mm?[?1.18?in?]
• Length: 96?mm?[?3.78?in?]

Packaging Features

• Packaging Quantity?: 5
• Packaging Method?: Box

Sibas Insert Housing Connectors HA.10.SGD-LB.2.16.Z

Features

• Sealed?: Yes
• Product Type?: Housing
• Product Size?: 2

Body Features

• Seal Material?: Neoprene
• Seal Type?: Profile
• Sealable?: Yes
• Color?: Silver Gray
• Seal Color?: Black
• Material?: Aluminum

Housing Features

• Housing Material?: Aluminum
• Housing Color?: Gray

Dimensions

• Height: 47?mm?[?1.85?in?]
• Width : 50?mm?[?1.97?in?]
• Length: 80.5?mm?[?3.16?in?]

Packaging Features

• Packaging Quantity?: 5
• Packaging Method?: Box

Other

• Comment?: With metal cover

Sibas Insert Housing Connectors HA.10.SGD-LB.1.16

Features

• Sealed?: Yes
• Product Type?: Housing
• Product Size?: 2

Body Features

• Seal Material?: Neoprene
• Seal Type?: Profile
• Sealable?: Yes
• Seal Color?: Black
• Material?: Aluminum

Housing Features

• Housing Material?: Aluminum
• Housing Color?: Gray

Dimensions

• Height: 47?mm?[?1.85?in?]
• Width : 50?mm?[?1.97?in?]
• Length: 80.5?mm?[?3.17?in?]

Packaging Features

• Packaging Quantity?: 5
• Packaging Method?: Box

Other

• Comment?: Includes cable fitting

Sibas Insert Housing Connectors HA.10.SG-LB.1.16

Features

• Applies To?: Cable
• Product Type?: Housing
• Product Size?: 2

Body Features

• Color?: Gray
• Material?: Aluminum

Dimensions

• Height : 47?mm?[?1.85?in?]
• Width : 50?mm?[?1.97?in?]
• Length : 80.5?mm?[?3.17?in?]

Packaging Features

• Packaging Quantity?: 5
• Packaging Method?: Box

Other

• Comment?: Includes cable fitting

Sibas Insert Connectors HN.D.15.BU.C

Product Type Features

• Product Size?: 2
• Product Type?: Insert
• HTS Housings and Hoods?: No
• Applies To?: Panel

Configuration Features

• a. Number of Positions?: 15

Electrical Characteristics

• Power Circuit Voltage?(V) : 250
• Power Circuit Current?(A) : 10

Body Features

• Insert Style?: Socket
• Color?: Gray
• Material?: PC

Contact Features

• Contact Type?: Pin
• Number of Poles?: 15+PE

Packaging Features

• Packaging Quantity?: 10
• Packaging Method?: Box

Other

• Comment?: Use with HN.D Series contact

Sibas Insert Connectors HN.D.15.STI.C

Product Type Features

• Product Size?: 2
• Product Type?: Insert
• HTS Housings and Hoods?: No

Configuration Features

• Number of Positions?: 15

Electrical Characteristics

• Power Circuit Voltage?(V) : 250
• Power Circuit Current?(A) : 10

Body Features

• Insert Style?: Pin
• Color?: Gray
• Material?: PolyCarbonate

Contact Features

• Contact Type?: Socket
• Number of Poles?: 15+PE

Packaging Features

• Packaging Quantity?: 10
• Packaging Method?: Box

Other

• Comment?: Use with HN.D Series contacts

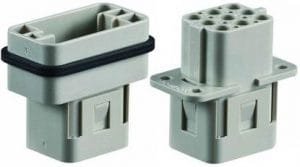

Sibas Insert Connectors HN.D.7.BU.C. 250 V

Product Type Features

• Product Size?: 1
• Product Type?: Insert
• HTS Housings and Hoods?: No

Configuration Features

• Number of Positions?: 8

Electrical Characteristics

• Power Circuit Voltage?(V) : 250
• Power Circuit Current?(A) : 10

Body Features

• Insert Style?: Socket
• Material?: Glass-Filled Thermoplastic

Contact Features

• Contact Type?: Pin
• Number of Poles?: 7/8+PE

Packaging Features

• Packaging Quantity?: 10
• Packaging Method?: Box

Other

• Comment?: Use with HN.D Series contacts

Sibas Insert Connectors HN.D.7.STI.C. 250V

Product Type Features

• Product Size?: 1
• Product Type?: Insert
• HTS Housings and Hoods?: No

Configuration Features

• Number of Positions?: 8

Electrical Characteristics

• Power Circuit Voltage?(V) : 250
• Power Circuit Current?(A) : 10

Body Features

• Insert Style?: Pin
• Interfacial Seal?: With
• Material?: PC

Contact Features

• Contact Type?: Socket
• Number of Poles?: 7/8+PE

Packaging Features

• Packaging Quantity?: 10
• Packaging Method?: Box

Other

• Comment?: Use with HN.D Series contacts
