Nemalux GS-AC Series Linear

Nemalux GS-AC Series Linear

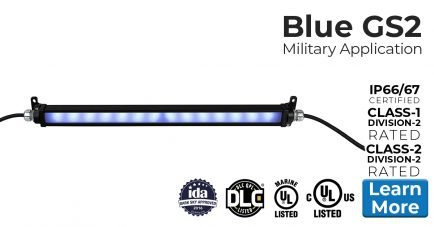

Nemalux GS-AC Series Linear, Extremely durable and water-tight, the GS Series of fixtures are able to withstand the most demanding environments. The GS was designed as a hazardous location, lightweight linear strip luminaire with a projected lifespan of 100,000 hours. Multiple lengths, optics and mounts make the GS a long-term solution to area lighting for multiple applications.

Another Article:

Nemalux GS-AC Series Linear Specification

GS-AC Series500 to 2,000 lumen, 120 VAC linear luminaire for marine and C1D2 location use | 4 Lengths: 15.5″, 26.5″, 37.5″, 48.5″

An industrial, water-tight (IP66/67), C1D2, AC powered luminaire.

Approved For: General, Marine, & Hazardous Locations

Total Lumens: GS1: 582 | GS2: 1292 | GS3: 2003 | GS4: 2714

Input Voltage: 120VAC ± 10% (60Hz)

Ingress Protection: IP66/67

Ambient Temp Range: -40°C to +65°C

Fixture Weight: 4 lengths see below            (mounts excluded)

Dimensions: 4 lengths see below

Weight:    GS1: 0.8 kg | 1.8 lbs   GS2: 1.2 kg | 2.6 lbs   GS3: 1.8 kg | 3.9 lbs  GS4: 2.4 kg | 5.3 lbs

Nemalux GS-AC Series Linear Features

  • Available with 100° (wide) beam profiles
  • Designed for Hazardous Locations
  • Optimized heat transfer for maximum longevity
  • Easy field angle adjustment
  • Projected lifespan exceeds 60,500 hours
  • Available in multiple lengths and a variety of LED colours
  • -40 to +60°C operating range
  • IP66/67 Gore® vented enclosure
  • AC and DC options

 C1D2    |    C2D2    |    IP66/67

UL Listed

   UL Marine Listed

IDA – Dark Sky Approved

American Bureau of Shipping

Nemalux GS-AC Series Linear Description

The GS is available in a general-purpose or Class 1 Div. 2 for hazardous locations. With AC and DC options, the GS can easily be wired into existing facilities or used in remote solar lighting applications.

Using industry-leading manufacturing practices, our engineers and industrial designers created a fixture that transfers heat away from the LEDs to the enclosure via the metal core PCB. This optimizes the operating temperature, maximizes efficiency, and increases the longevity of the components.

The GS comes with a field adjustable end bracket or may be flush mounted to surfaces or ceilings using carriage bolts. With wide or narrow beam profiles, multiple lengths, and color options, the GS provides a long-term solution for linear strip lighting applications.

Reference : nemalux.com

Download : Datasheet
