Turbines Incorporated Flow Meters

About Turbines Incorporated

Turbines Incorporated designs and manufactures reliable, competitively priced liquid, gas and cryogenic turbine flow meters, electronic monitors, accessories, and replacement parts.

Founded in 1975, we have earned an industry-leading reputation for outstanding customer service. Our flow metering specialists are always available to assist you to determine the best solution for your particular situation. To meet your needs quickly, we maintain one of the largest finished goods inventories and replacement parts in the industry, enabling us to ship within 24 hours in most cases.

We have transformed this vision into reality by utilizing the latest manufacturing techniques, advanced CNC equipment, and our expertly trained and highly committed staff. Turbines, Inc. produces turbine flow meters that accurately measure the flow of most liquids, gases and all cryogenics. We are proud to offer a complete line of totalizers/rate indicators and signal conditioners that provide the same value proposition as our turbines do.

At Turbines, Inc. we are proud that all our machining is done in-house enabling us to maintain a vast inventory to provide quick shipments to our loyal customer base. The ability to often provide same day shipments, has earned Turbines, Inc. a reputation throughout the industry as a partner that can be counted on to keep its’ customers up and running.

Why should you consider TI for Turbine Flow Metering?

Simply put, when purchasing from Turbines, Inc. you not only receive a quality product but also a partner. Having served our customers since 1975 Turbines Inc. has established itself as a quality manufacturer of turbine flow meters and electronics for a vast array of oil & gas and industrial applications.

With the addition of the R&D office in Seneca SC in 2009, Turbines, Inc. offers customers the ability to convert a fluid thought into a finished product in a timely manner. Our American made products are supported by a professional and experienced staff that can assist you in finding the optimum measurement solution for your application.

The Products of Turbines Incorporated

Turbines Incorporated provides a variety of metering devices, recalibration, and technical support services to suit your installation and repair needs. We maintain a large inventory of standard products at all times for quick delivery. New products are continually under development at Turbines, Inc., so please check back periodically to view our latest offerings.

Liquid Turbines Flow Meters

Turbines Incorporated offers industry leading liquid flow measurement turbines that come in a comprehensive variety of offerings, accuracy and impressive temperature operating ranges. Both our in-line meters (installed within a length of pipe) and wafer-style turbine meters (typically inserted between two flanges) are precision machined stainless steel and also available in a wide variety of materials of construction.

Turbines Incorporated Flow Meter
Turbines Incorporated Flow Meter

Turbines Incorporated extensive inventory and expedient delivery capabilities are a result of our investments in cutting-edge manufacturing and our network of dedicated facilities and partners. Our liquid turbine flow metering solutions are typically in stock and available for quick shipment.

HA/TMC Performance Data:

  • Accuracy over range: +/- 0.5% (premium accuracy of 0.25% is available)
  • Repeatability over flow range: +/- 0.10%
  • Operating temperature: -450°F to +850 °F
  • Line sizes from 1/2 inch through 12 inches

TM/WM Performance Data:

  • Accuracy over range: +/- 1.0% (TM0038 and WM0038 2.0%)
  • Repeatability over flow range: +/- 0.10%
  • Operating temperature: -100°F to +800 °F
  • Line sizes from 3/8 inch through 10 inches

Gaseous Turbines Flow Meter

Turbines Incorporated proud to offer a comprehensive portfolio of highly accurate, reliable, and efficient gas flow meters that satisfy a wide range of industrial, commercial, refinery, and aerospace markets. Whether it’s low-flow, high-pressure or engineered to order to meet your exact specifications, Turbines, Inc. is your partner.

Turbines Incorporated
Gaseous Turbines Flow Meter

Our extensive inventory and expedient delivery capabilities are a result of our investments in cutting-edge manufacturing and our network of dedicated facilities and partners. Our gas turbine flow metering solutions are often in stock and available for quick shipment.

TMG Series – Gas Flow Meter

The TMG Series gas flow meter delivers accurate measurement in a variety of applications. This durable turbine meter is designed to withstand challenging conditions and deliver accurate results over a long service life.

The Turbines Incorporated gas flow meter delivers +/‐ 1% standard accuracy over the flow range. For every turbine flow meter manufactured by Turbines, Inc., a unique K-factor is documented by means of NIST-traceable factory calibration. For additional local output, the TMG Series can be combined with one of our flow monitors for a complete, accurate solution.

  • Accuracy +/- 1% of rate
  • Temperature Application -100°F to +450°F
  • Highly configurable materials of construction
  • Line sizes 1″ or 12″
  • Flow rates from .5 to 12,000 AFCM
  • Pressure up to 15,000 psig

Low Flow Meters

Our low flow meters have optimized sensing abilities perfectly suited for a wide variety of low flow applications including fuel pumping, laboratory, aerospace, and various blending applications. Whether it’s small batch processing or an application where accuracy is paramount, our low flow meters are highly configurable and compatible.

Turbines Incorporated
Low Flow Meters

Turbines, Inc.’s vast in-stock inventory and expedient delivery capabilities are due to our investments in cutting-edge manufacturing and our network of dedicated facilities and partner.

LF Series

The LF Series from Turbines, Inc. offers measurement capability from .007 to 3 GPM. The LF Series is designed to operate in clean low viscosity fluid applications. The Low Flow Series meter can handle working pressures up to 5000 psig (based on end connection used) and delivers +/‐ .25% repeatability over the specified flow range. Every LF series meter manufactured by Turbines Inc., has a 20pt NIST traceable calibration performed that documents the meter’s unique performance. For additional outputs or local indication the LF Series can be combined with one of our linearized signal conditioners or rate indicator totalizers.

  • +/- 0.25% Repeatability of rate
  • Temperature Application -70°F to +450°F
  • Specifically Engineered for Low Flow Applications
  • Line size 1/2″
  • Flow rates from .007 to 3.00 GPM
  • Pressure up to 5000 psi

Cyrogenic Flow Meters

Our cryogenic flow meters, monitors, and accessories are built specifically for low temperature applications. These meters feature the same advanced technology, reliability, and accuracy of our liquid and gas measurement products and are Handbook 44 compliant including CTEP and NTEP.

Turbines Incorporated
Cyrogenic Flow Meters

Additional certifications are OIML R81, R117 and MID; tested and certified by NMi Netherlands. Turbines, Inc. cryogenic meters meet the demands of world’s leading liquefied gas producers and distributors by providing unmatched quality, reliability, and accuracy.

TMC – Cryrogenic Turbine Flow Meter

Turbines, lnc.’s flow meters for cryogenic flow metering applications feature the same advanced technology of our liquid flow measurement products, but are specifically built for low-temperature requirements. We understand that cryogenic processes require proven equipment, and impose unique demands on turbines. Therefore, we provide specialized cryogenic equipment that sets itself apart with its reliability and accuracy.

The TMC Series cryogenic turbine flow meter has an all stainless steel body and shaft, with a nickel rotor in all available line sizes. Turbines, lnc.’s cryogenic meters operating temperature range is -450° F to +450° F, making them the ideal meters for extreme temperature applications.

  • Accuracy +/- 0.5% of rate
  • Wide Temperature Application -450°F to +450°F
  • Specifically Engineered for Cryogenic Applications
  • Line sizes from 1/2″ to 12″
  • Flow rates from 1 to 12,000 gpm
  • Pressure up to 20,000 psi

High Accuracy Flow Meters

Our High Accuracy turbine flow meters are built with extremely tight tolerances only achievable with our precision manufacturing processes, comprehensive quality control, and in-house calibration capabilities.

Turbines Incorporated
High Accuracy Flow Meters

Specifically engineered to meet the strict standards required for custody transfer, the High Accuracy Meter delivers +/- 0.5% or better accuracy and +/- 0.1% repeatability for low viscosity applications. For every High Accuracy turbine flow meter manufactured by Turbines, Inc., a unique K-factor is documented by means of NIST-traceable factory or independent laboratory ISO/IEC 17025 certified.

Performance Data:

  • Accuracy: +/- 0.5% over standard flow range (for 0.25% consult factory)
  • Repeatability: +/- 0.1% over standard flow range
  • Linearity: +/- 0.5% over flow range
  • Operating Temperature: -450° F to +450° F (for higher temperatures consult factory)
  • End Connection: Flanged, Victaulic® (grooved), 37° AN Flare, or NPT (additional end connections available)
  • Flow Rate: From 1 to 12,000 GPM

Our vast in-stock inventory and expedient delivery capabilities are due to our investments in cutting-edge manufacturing, and our network of dedicated facilities and partners.

HA Series – High Accuracy Turbine Flow Meter

Our High Accuracy turbine flow meters are built with extremely tight tolerances that are achievable with our precision manufacturing processes, stringent quality control, and in-house calibration capabilities.

Specifically engineered to meet or exceed the strict standards often required for custody transfer applications, the High Accuracy Meter delivers +/- 0.5% or better accuracy and+/- 0.1 % repeatability for clean low viscosity fluids. Every turbine flow meter manufactured by Turbines, Inc., has a unique K-factor documented by means of a NIST-traceable factory or independent laboratory calibration.

  • Accuracy +/- 0.5% of rate
  • Wide Temperature Application -450°F to +850°F
  • Highly configurable materials of construction
  • Line sizes from 1/2″ to 12″
  • Flow rates from 1 to 12,000 gpm
  • Pressure up to 20,000 psi

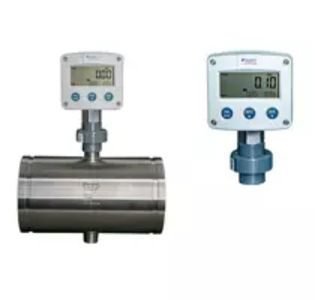

Flow Monitors

Selecting the proper flow monitor is crucial to achieving the full performance potential of a turbine flow meter. The Turbines, Inc. Series flow monitors provides a robust  monitoring solution that is ideal for the demands of field applications where a dependable local read out of  instantaneous rate and total is required.

Turbines Incorporated
Flow Monitors

Features and benefits include:

  • Ideal for industrial or outdoor installations, with NEMA 4X enclosure and LCD display which can be direct mounted onto the flow meter or remote mounted
  • Various monitors feature intrinsic safety or explosion proof ratings for operation in hazardous environments
  • Numerous power options including battery, DC, loop powered
  • Digital pulse outputs and 4-20mA, 0-5/0-10V analog outputs
  • Turbines, Inc. maintains a substantial inventory of parts and accessories for same day shipment
