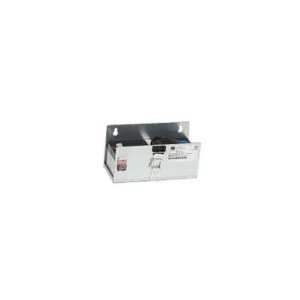

J. Schneider NBBH 2402 if the batteries are not installed and put into operation immediately, it is recommended to leave them in the box and store them at a cool, clean, and dry place. In case of storage longer than 6-9 months from the date of production, the batteries need supplementary charging before a possible putting into operation. Accumulator set incl. battery fixation and battery fuse, closed, maintenance-free, mounting orientation free available.
- mounting orientation free available (not standing on top)
- impact resistant and break-proof plastic housing made of ABS
- VdS/UL-licences
- plug valve controlled construction, nearly 100% oxygen recombination at each charging process
- An electrolyte is bound in the glass fiber mat
- refilling of electrolyte is not necessary
- non-corroding high power grid plates with lead-calcium corrosion
- the operational temperature range at corresponding voltage compensation depending on temperature
- excellent charging efficiency
- no dangerous good according to IATA
- conformity to EN 61056-2
- long life duration at low self-discharge, 3% each month at 20°C
Another Article: |
J. Schneider NBBH 2402 Technical Data |
|
---|---|
art.-no. | NBBHQ33G1M04 |
battery type | NBBH 2402 |
nominal voltage [V] | 24 |
capacity [Ah] | 2,2 |
height [mm] | 96 |
width [mm] | 178 |
depth [mm] | 105 |
weight [kg] |
3,8 |
Life Duration according to Eurobat up to 5 years
|
||||||||||||
article number | 452011.47 | 452011.20 | 452011.36 | 452011.22 | 452011.2 | 452011.4 | 452011.8 | 452011.9 | 452011.40 | 452011.53 | 452011.59 | 452011.6 |
battery type |
1,3-12 | 2,2-12 | 7-12 | 12-12 | 17-12 | 24-12 | 40-12 | 65-12 | 100-12sh | 120-12sh | 150-12 | 200-12 |
nominal voltage (V) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
capacity (Ah) | 1,3 | 2,2 | 7 | 12 | 17 | 24 | 40 | 65 | 100 | 120 | 150 | 200 |
height (mm) | 59 | 67 | 94 | 95 | 167 | 127 | 170 | 179 | 215 | 222 | 240 | 218 |
width (mm) | 97 | 178 | 151 | 151 | 181 | 165 | 197 | 350 | 171 | 171 | 172 | 522 |
depth (mm) | 43 | 35 | 65 | 98 | 77 | 175 | 165 | 167 | 330 | 330 | 485 | 238 |
weight (kg) | 0,85 | 1,05 | 2,4 | 3,8 | 5,7 | 9,2 | 12,2 | 22,2 | 32 |
38 |
47 | 65 |
