Honda Ultrasonic Level Sensor Meter

Introduction

HONDA ELECTRONICS has brought innovations to the world by introducing ultrasonic technologies since the release of the world-first transistor fishfinder in 1956. With originality in mind, HONDA ELECTRONICS also respects technologies in various fields and participates in many collaborative projects. This “Open Technology” policy shall lead us to make further contributions that will enhance human life.

Honda Ultrasonic Sensor are applying our ultrasonic research to a variety of fields within the industrial equipment sector.
Cleaners(Ultrasonic washers), machining tools(ultrasonic welders), measuring equipment, flow meter, and so forth, have proven their use under various conditions. And new applications in the areas of ultrasonic reactor(maturity)and power dynamics(motors) hold great promise for future success.

Our Industrial Instruments Division works with over 500 ultrasonic elemental technologies to develop and market state-of-the-art products. And in joint research with clients in a variety of fields, we are furthering our goals by designing the industrial instruments of tomorrow.

Ultrasonic Level Meter tank
Ultrasonic Level Meter tank

Principle

Ultrasonic waves transmitted from the sensor are reflected back from the measured object, and the distance is calculated based on
the echo return time. This makes it possible to perform operations such as measuring the liquid level inside a tank, or monitoring the
remaining amount of materials in a tank.

  • Distance = Speed of sound × Time

The distance to the measured surface is calculated based on the speed of sound and the time elapsed between the transmission of
the signal and the return of the echo. The distance to the bottom of the tank is set in advance, so that the amount of liquid remaining
in the tank can be calculated.

Advantages

Levels can be monitored without any contact with the materials that are measured. Levels can be monitored continuously, even under HD duty conditions.

Honda Ultrasonic Level Meter Product

1. HD320 series | Ultrasonic Level Meter

Compact, light weight level meter which include sensor and display in one unit. Graphical display shows real time wave form in A-mode and it is useful for maintenance. Mask function can avoid noise interference.

Features

  • Two-wire interface can suppress the cost of installation, wiring and operation.
    • Two-wire system supplies electric power through the data line. Electrical wiring is completed only with two lines, power + data and ground.
  • Four screen mode can be selected
  • Large display is adopted for HD323 (Display size : 50 x 25mm, 49% larger than HD320)
  • Mask functio
    • Unnecessary signal can be eliminated from the received signal by manually.
    • Echo signal from existing structure positioned between sensor and target cause interference. Mask function removes these
    • unnecessary echo effectively.
  • Low-cost model with two-wire system, featuring a graphic LCD display
  • Graphic LCD display shows the A-mode waveform
  • When performing measurements, masking can be applied to objects positioned between the sensor and target

Main applications and usage examples

  • Management of liquid level in tanks
  • Management of sewage level inside pipes
  • Measurement of water level in lakes, ponds, and rivers
Honda HD320 Ultrasonic Level Meter.jpg
Honda HD320 Ultrasonic Level Meter.jpg
Ultrasonic Level sensor tank
Ultrasonic Level sensor tank
Model No. HD320 HD323
Number of channels 1
Frequency 50kHz
Measurement target liquid
Measurement distance range 0.25 to 7.5m
Resolution Measurement 1mm
Display 1mm
Accuracy ±0.25%F.S.
(±1.88cm)
Data update cycle 10sec
Sensor directive angle (beam angle) 14°(-6dB) / 10°(-3dB)
Power source Voltage 24VDC
Power consumption 0.6W
Display Graphic LCD
Display size 28.1 x 9.1mm 50 x 25mm
Output 4-20 mA current Resolution: 12 bits
(Max. load resistance 500Ω 24V)
Ambient operating temperature -20 to 70℃
Material PP (polypropylene)
Protection IP65 equivalent (without lid: IP20 equivalent)
Dimensions dia. 93 x 110mm
Cable length 10m
Weight 350g
Mounting screw G2 (PF2)

Do not use metal nut or metal flange. It may cause error on measurement.
* Please use nut or flange that made of plastic.

2. HD350 series | Ultrasonic Level Meter

Compact, light weight level meter which include sensor and display in one unit. Graphical display shows real time wave form in A-mode and it is useful for maintenance. Mask function can avoid noise interference.

Features

  • For screen mode can be selected
  • Large display is adopted for HD353-A (Display size : 50 x 25mm, 49% larger than HD350-A)
  • Mask function
    • Unnecessary signal can be eliminated from the received signal by manually.
    • Echo signal from existing structure positioned between sensor and target cause interference.
    • Mask function removes these unnecessary echo effectively.
  • Interface
    • Three interface methods are prepared for remote operation.
      • RS-485 (MODBUS protocol)
      • 4-20 mA current output
      • Contact points (relay output)
  • Low-cost DSP level meter
  • Graphic LCD display shows the A-mode waveform
  • Wide measurement range, from 0.3 to 10 m
  • When performing measurements, masking can be applied to objects positioned between the sensor and target
  • Remote operation is enabled with RS-485 ( MODBUS® protocol ), 4 to 20 mA current output, and alarm output contact points

Main applications and usage examples

  • Management of liquid/powder levels in tanks
  • Measurement of water level in lakes, ponds, and rivers

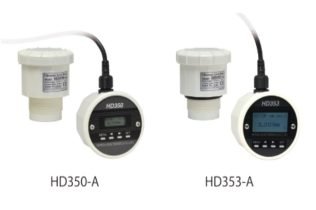

Honda HD350 Ultrasonic Level Meter
Honda HD350 Ultrasonic Level Meter

Specification

Model No. HD350-A HD353-A
Number of channels 1
Frequency 50kHz
Measurement target liquid / powder
Measurement distance range (1/2 for powder) 0.3 to 10m
Resolution Measurement 1mm
Display 1mm
Accuracy ±0.25%F.S.
(±2.5cm)
Data update cycle 0.5 sec
Sensor directive angle (beam angle) 14°(-6dB) / 10°(-3dB)
Power source Voltage 12 – 24 VDC ±10%
Power consumption 3 W
Display Graphic LCD
Display size 28.1 x 9.1mm 50 x 25mm
Output Alarm output 1 point each for upper/lower
(NPN open collector)
4-20 mA current Resolution: 12 bits
(Max. load 500Ω)
Interface RS-485 (Transmitting distance : max. 1200m)
Ambient operating temperature -20 to 70℃
Material PP (polypropylene)
Protection IP65 equivalent (without lid: IP20 equivalent)
Dimensions dia. 93 x 110mm
Cable length 10m
Weight 350g
Mounting screw G2 (PF2)

● Option: 30m cable

Do not use metal nut or metal flange. It may cause error on measurement.
* Please use nut or flange that made of plastic.

3. HD1200 | Ultrasonic Level meter

Advanced DSP technology enabled stable measurement.

Overview

  • Advanced level sensing algorithm suppresses the noise level and artifacts and enabled stable measurement.
  • One main unit handles two sensors at once. Two different types of sensors can be installed and each may measures different range.
  • Data logging function to micro SD TM.
  • Flow measurement by measuring catchment level is possible.

Equipped with DSP that achieves stable measurement

  • A unique level detection algorithm is achieved with DSP, which enables stable measurement by eliminating the effects of noise and unwanted reflection
  • Two sensors can be connected to the main unit at the same time, so measurement can be performed at two separate locations with different measurement ranges
  • Log data can be stored on a micro SD™ card
  • Standard-equipped with a weir type flow meter function ( open channel flow meter )

Main applications and usage examples

  • Management of liquid/powder levels in tanks
  • Measurement of water level in lakes, ponds, and rivers
  • Weir type flow measurement

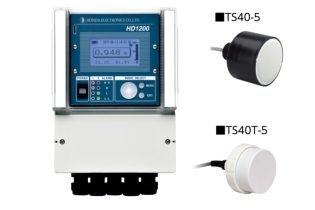

Honda HD1200 Ultrasonic Level Meter
Honda HD1200 Ultrasonic Level Meter

Specification

Level Ultrasonic Transmitter

Model No. HD1200
Channel 2
Frequency 10 to 60 kHz (select by sensor)
Measurement object liquid / powder
Resolution Measurement 1 mm
display 1 mm
Accuracy ±0.25% F.S.
 Data refresh rate 2 sec. approx. (depends on sensor)
Power source Voltage 100 to 240 V AC ±10 %
Power consumption 10 VA
Display LCD with backlight
Output Alarm 4 points / channel
250VAC, 5 A (relay contact)
4-20mA current Resolution: 1/4000
(Max. load resistance 600Ω)
Interface RS-485 (max. distance: 1200 m or less)
RS-232C (max. distance: 10 m or less)
Memory microSDTM *1
Operation temperature -20 to 70℃
Material ABS
Protection IP66 equivalent
Dimension (WxDxH mm) 176x84x237
Weight 1.8 kg

NOTE : Weir type flowmeter is available on CH1

*1 : microSDTM is a trademark of SD Card Association

Level Ultrasonic Sensor Specification

Model No. Sensor
TS40-5 TS40T-5
Frequency 40 kHz
Measurement range 0.3 to 20m 0.3 to 15m
(1/2 value for powder)
Directive angle 12°(-6dB) 22°(-6dB)
(half of full angle) 8°(-3dB) 16°(-3dB)
Operation temperature -20 to 70℃
Material Epoxy/silicone/ PP PVDF
Protection IP68 equivalent IP68 equivalent
Dimension (mm) dia. 84×90 dia. 98×87
Sensor cable length 5m
Weight 500g 860g
Mounting screw R1 (PT1) G1 (PF1)

Note :

  • TS40T-5 is chemical resistant.
  • The sensors cannot be used in hydrofluoric acid environment.

4. HD500 series | Ultrasonic Level meter

measures liquid or chemical surface level with no contact by ultrasound.

Overview

  • Hiring high frequency ultrasonic system enables small dead zone and is possible to measure short distance.
  • High resolution, 0.1 mm
  • Minimize the main unit and sensor unit, so easy to install to the limited area.
  • Sensor part is chemical proof plastic (PFA).
  • Equipped RS-232C interface, 4-20 mA current output, Alarm output allows to communicate with existing system.
  • Flow measurement by measuring catchment level is possible.

Usage

  • Sensing or positioning goods on production line
  • Liquid level sensing in small size tank

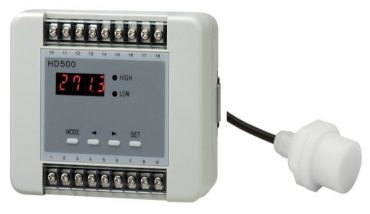

Honda HD500 Ultrasonic Micro Level Meter
Honda HD500 Ultrasonic Micro Level Meter

Specification

Model No. HD500-C HD500-D
Number of channels 1
Frequency 200 kHz 400 kHz
Measurement target Liquid
Measurement distance range 0.12 to 1.0 m 0.06 to 0.45 m
Resolution Measurement 0.1 mm
Display 0.1 mm
Accuracy ±0.25 % F.S. ±0.25 % F.S.
(±0.25cm) (±0.1cm)
Data update cycle 0.05 seconds
Sensor directivity angle 10° (-6dB) 5° (-6dB)
7° (-3dB) 4° (-3dB)
Power source Voltage 12 to 24 V DC ±15%
Power consumption 3 W (500mA when started)
Display 4-digit LED
Output Alarm 2 points each for upper/lower
30V DC, 0.1 A (NPN open collector)
4-20mA current output Resolution:16bits
(Max. load resistance 450Ω)
Interface RS-232C(Transmission distance : Max.10m)



Model Main unit Sensor unit
Ambient operating temperature 0 to 50℃
Material ABS PFA
Cable: FEP
Capcon : PVDF
Capcon inner seal: PPE-V
Structure IP43 equivalent IP65 equivalent
Dimensions 113x52.5x94 dia 42x39
(WxDxHmm)
Sensor cable length 2 m
Max. sensor cable length 2 m
Weight 300 g 150 g
Screw M32 P1.0

Only HD500-C is standard-equipped with the weir type flowmeter function.
The flow rate can also be measured for triangular weir.

5. HL2000 | Ultrasonic Interface Level Meter

Overview

Measures the flying time of ultrasonic signal to the sludge level. Ultrasonic signal has characteristic that it reflects where the density changes. Submerged sensor transmit ultrasonic signal, then the signal reflects at the interface inside the tank. Some part of signal penetrate into the sludge and it also reflects at the rake or bottom of the tank. Ultrasonic signal transfers in the unclear water. There is no need to contact to the measuring object (sludge), the measurement can be done without sinking the sensor deep into the tank.

Ultrasonic Interface level meter
Ultrasonic Interface level meter

Features

  • Measuring range is wide from 0.5 to 10 meters.
  • One unit can measure two distances from different sensors.
  • Thanks to ultrasonic signal, no need to care about clarity of the water, day or night (nob need of light)
  • Calculation process is prepared for supply water quality or deposited sludge, so no need of extra setting or calibration.
  • Durable and stable. Both main unit and sensor unit does not consist any mechanical movement part.

Usage

  • Interface management of settling tank at industrial wastewater treatment facility
  • Interface management for a settling tank at sewage treatment facility

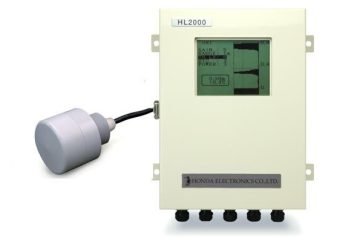

Honda HL2000 Ultrasonic Interface Level Meter.jpg
Honda HL2000 Ultrasonic Interface Level Meter.jpg

Specification

Model No. HL2000
Number of channels 2
Frequency 400 kHz
Measuring target Sludge interface
Measurement distance range 0.4 – 10 m
Resolution Measurement 1 cm
Display 1 cm
Data update cycle 1 sec.
Sensor directivity angle (half of full angle of sound pressure)
Power source Voltage 100-240 V AC ±15%
Power consumption 10 VA
Display LCD (with backlight)
Output Alarm output 2 points each for upper/lower channel
250V AC, 30V DC, 5 A (relay contact)
4-20 mA current output Resolution: 16 bits, 1 point per channel
(Max. load resistance 450Ω)
Interface RS-232C(Transmission distance : Max. 10m)



Model Main unit Sensor unit
Ambient operating temperature -10 to 60d℃ -5 to 60d℃
Material Painted steel Case: PVC
Cable: PVC
Structure IP54 equivalent IP68 equivalent
Dimensions 280x92.5x322 dia. 80x95
(WxDxHmm)
Sensor cable length 20 m
Max. sensor cable length 100 m *1
Weight 3.6 kg 2.2 kg
